Color-Coated PPGI Coil – Strong, Weatherproof, Beautiful

Prepainted galvanized steel coils in standard & custom colors. High paint adhesion and zinc base for durable outdoor use in roofing, siding, and industrial panels.

What Is PPGI Coil?

PPGI (Pre-Painted Galvanized Iron) coil is cold rolled steel sheet that is galvanized with zinc and coated with a protective paint layer. It combines the corrosion resistance of GI with the aesthetics and functionality of paint.

Structure：

Base steel (CR) → Zinc layer (GI) → Chromate → Primer → Topcoat (PE/SMP/PVDF)

PPGI coils are widely used in roofing sheets, wall cladding, garage doors, home appliances, shelving, and sandwich panels due to their color variety, weather resistance, and formability.

side menu

Products Link

Optional product specifications

Property	Details
Base Metal	Hot-dip Galvanized Steel (GI)
Coating Types	PE (Polyester), SMP, PVDF
Coating Thickness	Top: 15–25μm / Back: 5–10μm
Zinc Coating	Z40–Z275 g/m²
Thickness	0.14 – 1.2mm
Width	600 – 1250mm

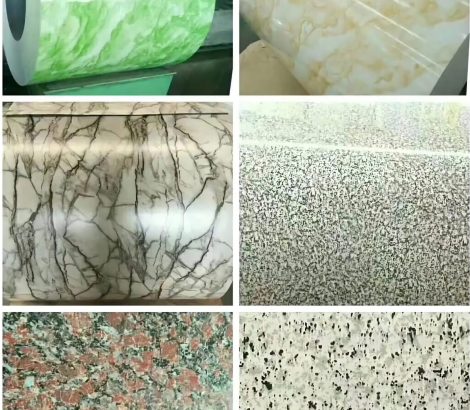

Paint Colors	RAL standard / custom color matching
Finish	Glossy, Matte, Wrinkle, Woodgrain
Standard	ASTM A755 / JIS G3312 / EN 10169

* Optional: anti-fingerprint coating, printing patterns, embossing, PVC film.

PPGI Color Coated Coil Performance Characteristics and Applications

I. Performance Characteristics

Base Material Characteristics

Using hot-dip galvanized steel sheet as the base material, the zinc layer provides basic rust protection, extending service life to 1.5 times that of galvanized strip.

The aluminum zinc magnesium substrate (PPGL) further enhances corrosion resistance, suitable for high humidity or chemical environments.

Coating Advantages

The surface is coated with organic coatings (such as polyester, silicone-modified polyester, or PVDF), forming a multi-layer protective film that significantly improves weather resistance.

The coating can be customized in colors (such as sea blue, brick red) and textures to meet aesthetic requirements.

Physical Properties

Lightweight and high-strength, easy to process into corrugated sheets or composite sandwich panels.

High temperature resistance and UV resistance; does not easily fade or chalk in outdoor environments.

II. Main Applications

Construction Industry

Roofing and Walls: Used as lightweight enclosure material for steel structure factories, airport warehouses, etc.

Decorative Components: Such as billboards and partitions; its rich colors directly replace traditional building materials.

Home Appliance Industry

Manufacturing refrigerator and air conditioner casings requires a smooth surface and resistance to chemical corrosion.

Industry and Transportation

Automotive interior parts and warehousing equipment utilize its ease of processing and durability.

Other Fields

Furniture and transportation vehicle components balance functionality and aesthetics.

PPGI color-coated coils, through the synergistic effect of the substrate and coating, have become a preferred material for many industries, balancing cost, performance, and aesthetic requirements.
